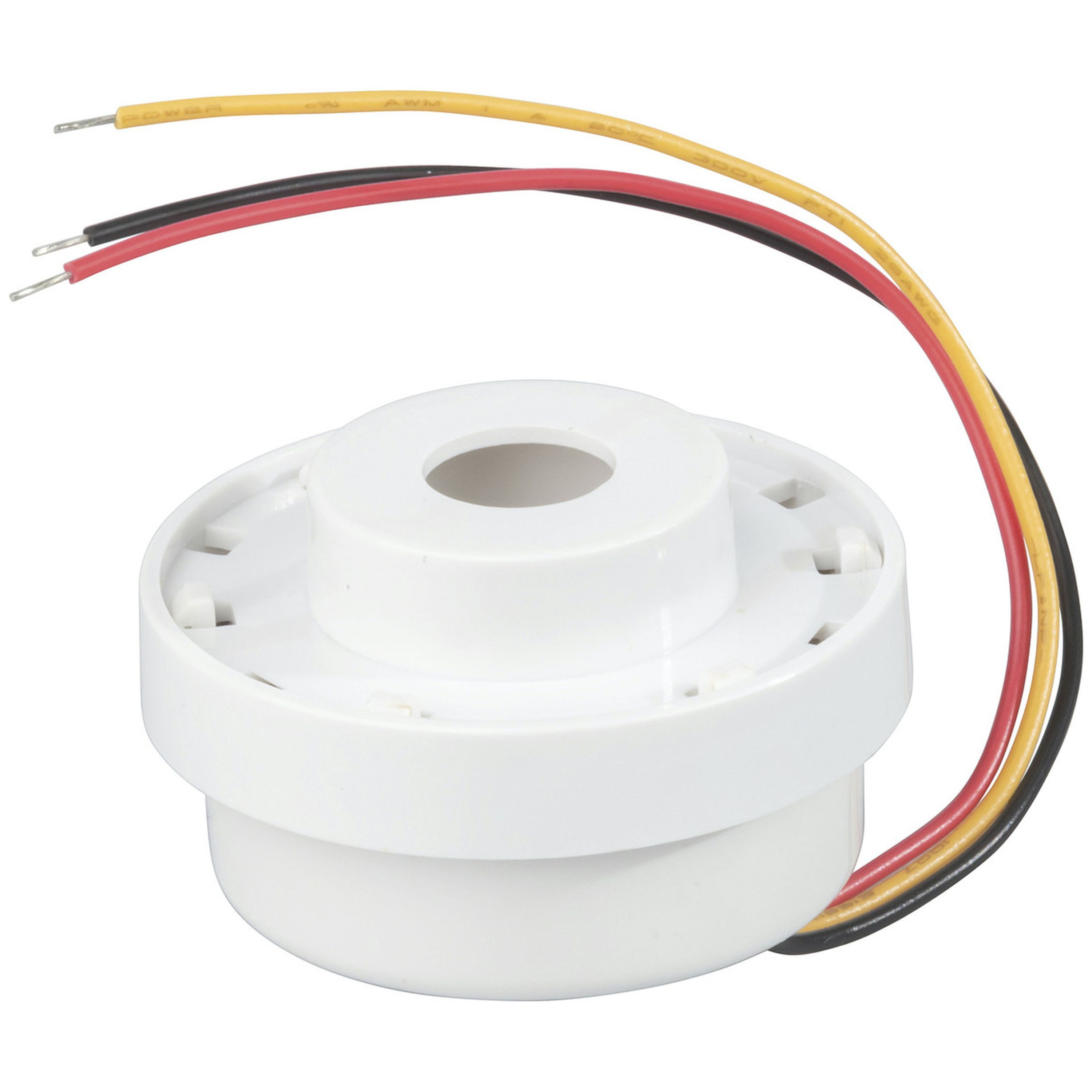

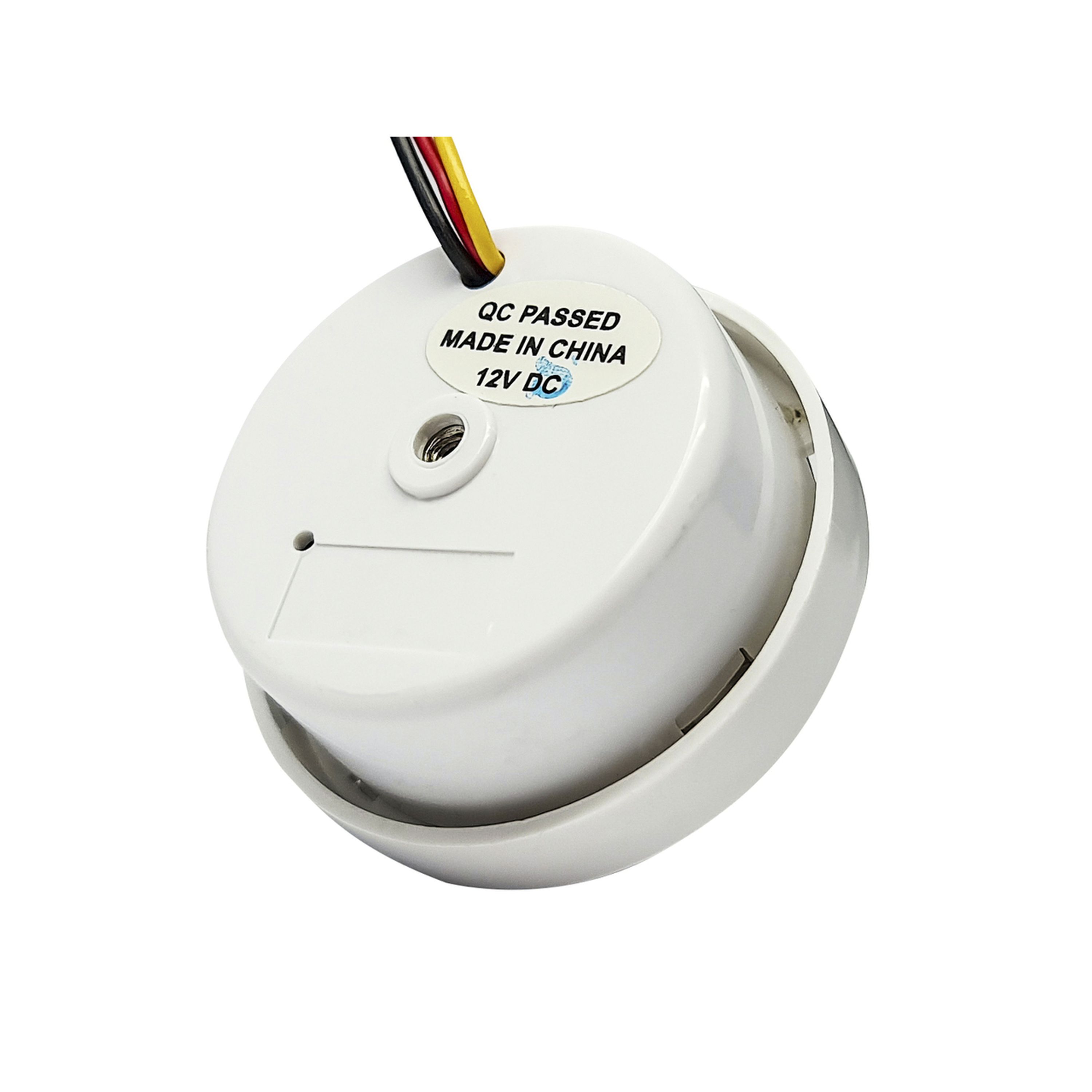

Dual Sound Piezo Buzzer 1-13VDC
- Cat No:
- AB3456
Pack Size:1 Each
In Stock$11.90
Description
Similar to Sonalert earpiercing sound. Non inductive, operates from 1V - 13VDC. Now with both continuous tone and pulsed tone. Red and black for continuous, yellow and black for pulse tone. Ideal for almost all signalling applications.
Features:
Features:
- Sound Pressure Level: 105dB/30cm single 100dB/ 30cm pulse
- Pulse Rate: 2 - 7 pulses per second
- Mounting: 1 x 3mm screw surface mount
Specifications
- Buzzer Type
- Piezo
- Buzzer Operating Voltage
- 1V, 13V
- Rated Voltage
- 12v
- Buzzer Current
- 35mA
- Buzzer Frequency
- 2.9kHz
- Height
- 26mm
- Diameter
- 45mm
- Packaged Dimensions
- 4.5 x 4.5 x 2.5 cm
