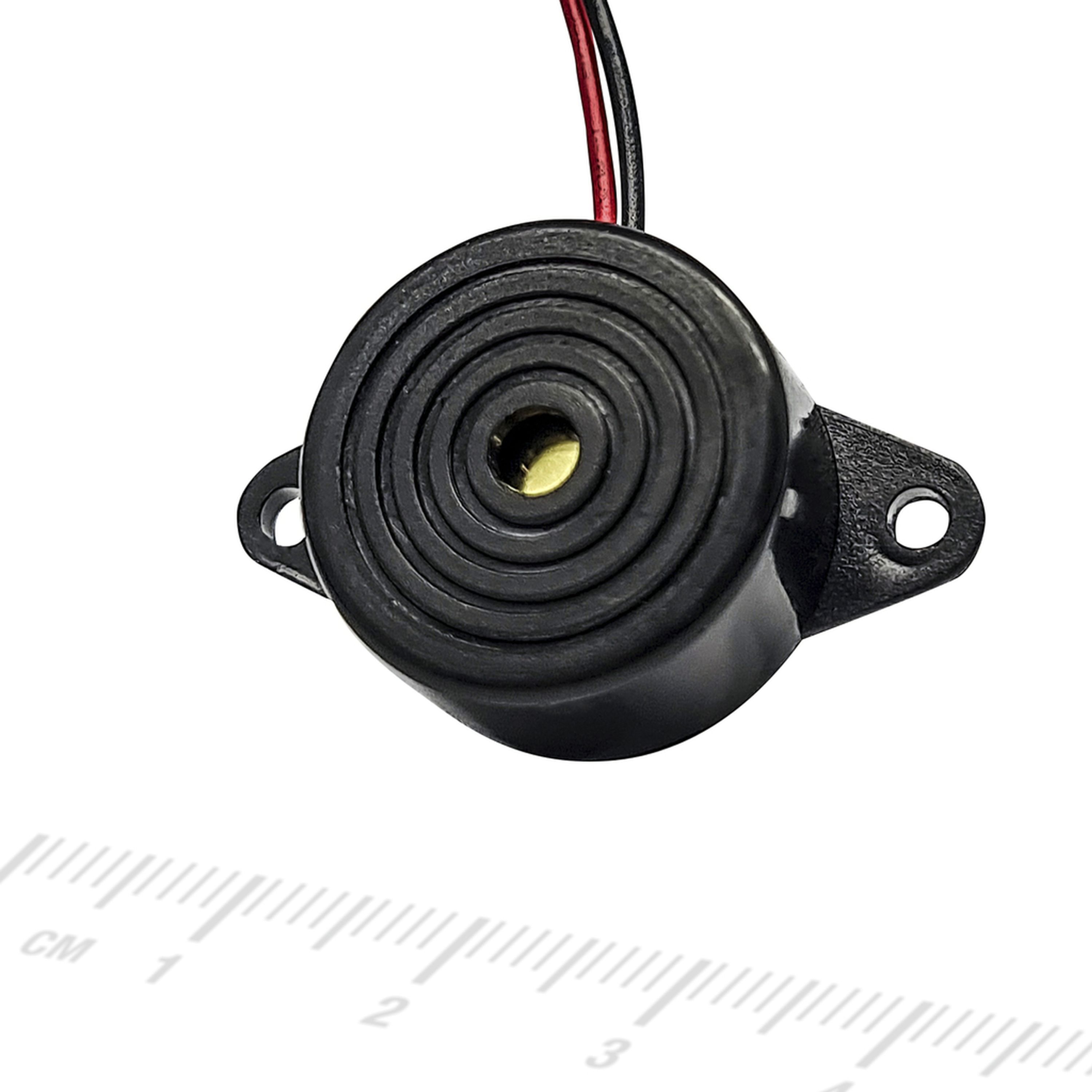

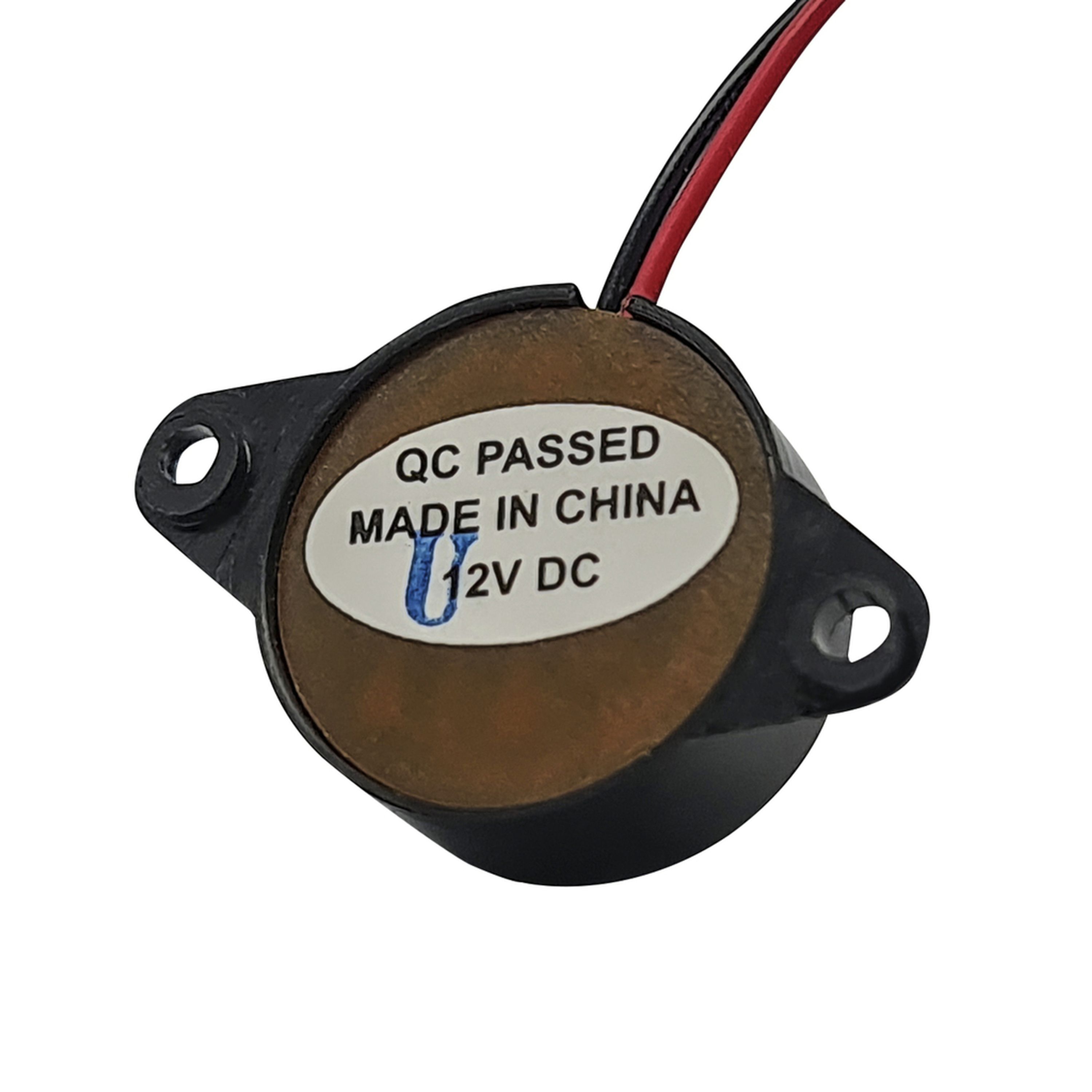

Mini Piezo Buzzer 3-16VDC
- Cat No:
- AB3462
Pack Size:1 Each
In Stock$5.40
Description
It offers medium to loud sound output, low current consumption and is extremely durable.
Features:
- Typical output: 90dB
- Pre-wired leads
- Screw hole for surface mounting
Specifications
- Buzzer Type
- Piezo
- Buzzer Operating Voltage
- 16V, 16V
- Buzzer Current
- 15mA
- Buzzer Frequency
- 3.3kHz
- Sound Pressure Level
- 90dB
- buzzer mount
- screw holes
- Height
- 12mm
- Diameter
- 22mm
- Dimensions details
- Distance between holes
- Length
- 30mm
- Packaged Dimensions
- 9.6 x 3.3 x 1.3 cm
